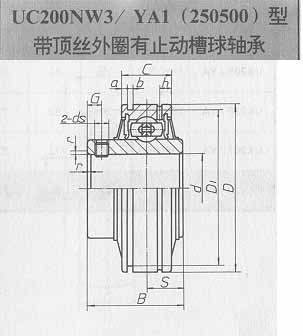

250500（ＵＣ２００ＮＷ／ＹＡ１）型 带顶丝外圈有止动槽球轴承参数表
| 轴承型号 |
外形尺寸(mm) |
重量 |
额定动负荷 |
额定静负荷 |
极限转速 |
| d |
D |
D1 |
B |
S |
C |
G |
a |
b |
h |
r |
ds |
kg |
kn |
kn |
r/min |
| 250503 |
UC203NW3 |
17 |
47 |
44.6 |
31.0 |
12.7 |
17 |
4.5 |
2.38 |
1.5 |
3.8 |
1.0 |
M6x1 |
0.23 |
9.88 |
6.2 |
4000 |
| 250504 |
UC204NW3 |
20 |
47 |
44.6 |
31 |
12.7 |
17 |
5 |
2.38 |
1.5 |
3.8 |
1 |
M6x1 |
0.21 |
9.88 |
6.2 |
4000 |
| 250505 |
UC205NW3 |
25 |
52 |
49.7 |
34.1 |
14.3 |
17 |
5 |
2.38 |
1.5 |
5.2 |
1 |
M6x1 |
0.27 |
10.78 |
6.98 |
3400 |
| 250506 |
UC206NW3 |
30 |
62 |
59.6 |
38.1 |
15.9 |
19 |
5 |
3.18 |
2.05 |
5.6 |
1 |
M6x1 |
0.39 |
14.97 |
10.04 |
2800 |
| 250507 |
UC207NW3 |
35 |
72 |
68.8 |
42.9 |
17.5 |
20 |
7 |
3.18 |
2.05 |
5.6 |
1.1 |
M8x1 |
0.63 |
19.75 |
13.67 |
2400 |
| 250508 |
UC208NW3 |
40 |
80 |
76.8 |
49.2 |
19 |
21 |
8 |
3.18 |
2.05 |
6.4 |
1.1 |
M8x1 |
0.81 |
22.71 |
15.94 |
2200 |
| 250509 |
UC209NW3 |
45 |
85 |
81.8 |
49.2 |
19 |
22 |
8 |
3.18 |
2.05 |
6.4 |
1.1 |
M8x1 |
0.9 |
24.36 |
17.71 |
1900 |
| 250510 |
UC210NW3 |
50 |
90 |
86.8 |
51.6 |
19 |
24 |
9 |
3.18 |
2.85 |
7.5 |
1.1 |
M10x1 |
1.00 |
26.98 |
19.84 |
1800 |
| 250511 |
UC211NW3 |
55 |
100 |
96.8 |
55.6 |
22.2 |
25 |
9 |
3.18 |
2.85 |
7.5 |
1.5 |
M10x1 |
1.16 |
33.37 |
25.11 |
1600 |
| 250512 |
UC212MW3 |
60 |
110 |
106.8 |
65.1 |
21.4 |
27 |
10 |
3.18 |
2.85 |
7.5 |
1.5 |
M10x1 |
1.60 |
36.74 |
27.97 |
1500 |
|
|
