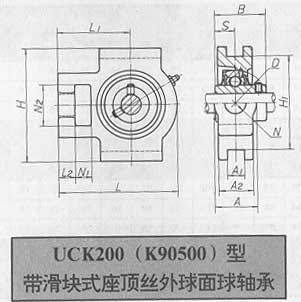

K90500型(UCK200) 带滑块座顶丝外球面球轴承参数表

带座轴承型号		外形尺寸														带座轴承重量	配用轴承代号		配用轴承座代号		配合轴径
		D	B	S	L	L1	L2	H	H1	A	A1	A2	N	N1	N2	Kg
K90503	UCT203	47	31	12.7	94	61	10	89	76	32	12	21	19	16	32	0.8	90503	UC203	K503	T203	17
K90504	UCT204	47	31	12.7	94	61	10	89	76	32	12	21	19	16	32	0.8	90504	UC204	K504	T204	20
K90505	UCT205	52	34.1	14.3	97	62	10	89	76	32	12	24	19	16	32	0.9	90505	UC205	K505	T205	25
K90506	UCT206	62	38.1	15.9	113	70	10	102	89	32	12	28	22	16	37	1.3	90506	UC206	K506	T206	30
K90507	UCT207	72	42.9	17.5	129	78	13	102	89	37	12	30	22	16	37	1.7	90507	UC207	K507	T207	35
K90508	UCT208	80	49.2	19	144	88	16	114	102	49	16	33	29	19	49	2.3	90508	UC208	K508	T208	40
K90509	UCT209	85	49.2	19	144	87	16	117	102	49	16	35	29	19	49	2.4	90509	UC209	K509	T209	45
K90510	UCT210	90	51.6	19	149	90	16	117	102	49	16	37	29	19	49	2.5	90510	UC210	K510	T210	50
K90511	UCT211	100	55.6	22.2	171	106	19	146	130	64	22	38	35	25	64	3.8	90511	UC211	K511	T211	55
K90512	UCT212	110	65.1	25.4	194	119	19	146	130	64	22	42	35	32	64	4.7	90512	UC212	K512	T212	60
	UCT213	120	65.1	25.4	224	137	21	167	151	70	26	44	41	32	70	7		UC213		T213	65
	UCT214	125	74.6	30.2	224	137	21	167	151	70	26	46	41	32	70	7.3		UC214		T214	70
	UCT215	130	77.8	33.3	232	140	21	167	151	70	26	48	41	32	70	7.7		UC215		T215	75
	UCT216	140	82.6	33.3	235	140	21	184	165	70	26	51	41	32	70	8.4		UC216		T216	80
	UCT217	150	85.7	34.1	260	162	29	198	173	73	30	54	48	38	73	11		UC217		T217	85

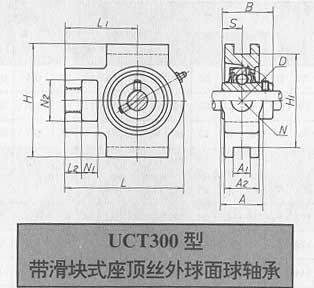

    K90600型(UCT300) 带滑块座顶丝外球面球轴承参数表

带座轴承型号		外形尺寸														带座轴承重量	配用轴承代号		配用轴承座代号		配合轴径
		D	B	S	L	L1	L2	H	H1	A	A1	A2	N	N1	N2	Kg
K90605	UCT305	62	38	15	122	76	12	89	80	36	12	26	26	16	36	1.4	90605	UC305	K605	T305	25
K90606	UCT306	72	43	17	137	85	14	100	90	41	16	28	28	18	41	1.8	90606	UC306	K606	T306	30
K90607	UCT307	80	48	19	150	94	15	111	100	45	16	32	30	20	45	2.4	90607	UC307	K607	T307	35
K90608	UCT308	90	52	19	162	100	17	124	112	50	18	34	32	22	50	3	90608	UC308	K608	T308	40
K90609	UCT309	100	57	22	178	110	18	138	125	55	18	38	34	24	55	4	90609	UC309	K609	T309	45
K90610	UCT310	110	61	22	191	117	20	151	140	61	20	40	37	27	61	5	90610	UC310	K610	T310	50
K90611	UCT311	120	66	25	207	127	21	163	150	66	22	44	39	29	66	6.4	90611	UC311	K611	T311	55
K90612	UCT312	130	71	26	220	135	23	178	160	71	22	46	41	31	71	7.6	90612	UC312	K612	T312	60
K90613	UCT313	140	75	30	238	146	25	190	170	80	26	50	43	32	70	9.7	90613	UC313	K613	T313	65
K90614	UCT314	150	78	33	252	155	25	202	180	90	26	52	46	36	85	11	90614	UC314	K614	T314	70
K90615	UCT315	160	82	32	262	160	25	216	192	90	26	55	46	36	85	14	90615	UC315	K615	T315	75
K90616	UCT316	170	86	34	282	174	28	230	204	102	30	60	53	42	98	16	90616	UC316	K616	T316	80
K90617	UCT317	180	96	40	298	183	30	240	214	102	32	64	53	42	98	20	90617	UC317	K617	T317	85
K90618	UCT318	190	96	40	312	192	30	255	228	110	32	66	57	46	106	22	90618	UC318	K618	T318	90
K90619	UCT319	200	103	41	322	197	31	270	240	110	35	72	57	46	106	25	90619	UC319	K619	T319	95
K90620	UCT320	215	108	42	345	210	32	290	260	120	35	75	59	48	115	32	90620	UC320	K620	T320	100
K90621	UCT321	225	112	44	345	210	32	290	260	120	35	75	59	48	115	32	90621	UC321	K621	T321	105
K90622	UCT322	240	117	46	385	235	38	320	285	130	38	80	65	52	125	40	90622	UC322	K622	T322	110
K90624	UCT324	260	126	51	432	267	42	355	320	140	45	90	70	60	140	55	90624	UC324	K624	T324	120
K90626	UCT326	280	135	54	465	285	45	385	350	150	50	100	75	65	150	69	90626	UC326	K626	T326	130
K90628	UCT328	300	145	59	515	315	50	415	380	155	50	100	80	70	160	84	90628	UC328	K628	T328	140
