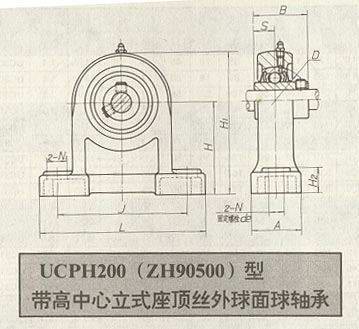

UCPH200(ZH90500)型 带高中心立式座顶丝外球面球轴承参数表
| 带座轴承型号 |
外形尺寸 |
带座轴承重量 |
配用轴
承代号 |
配用轴承
座代号 |
螺栓
尺寸 |
配合
轴径 |
| D |
B |
S |
L |
J |
H |
H1 |
H2 |
A |
N |
N1 |
Kg |
| ZH90503 |
40 |
27.4 |
11.5 |
127 |
95 |
70 |
101 |
15 |
40 |
13 |
19 |
1 |
90503 |
ZH503 |
M10 |
17 |
| ZH90504 |
47 |
31 |
12.7 |
127 |
95 |
70 |
101 |
15 |
40 |
13 |
19 |
1 |
90504 |
ZH504 |
M10 |
20 |
| ZH90505 |
52 |
34.1 |
14.3 |
140 |
105 |
80 |
114 |
16 |
50 |
13 |
19 |
1.2 |
90505 |
ZH505 |
M10 |
25 |
| ZH90506 |
62 |
38.1 |
15.9 |
165 |
121 |
90 |
130 |
18 |
50 |
17 |
21 |
1.8 |
90506 |
ZH506 |
M14 |
30 |
| ZH90507 |
72 |
42.9 |
17.5 |
167 |
127 |
95 |
140 |
19 |
60 |
17 |
21 |
2.4 |
90507 |
ZH507 |
M14 |
35 |
| ZH90508 |
80 |
49.2 |
19 |
184 |
137 |
100 |
149 |
19 |
70 |
17 |
25 |
2.4 |
90508 |
ZH508 |
M14 |
40 |
| ZH90509 |
85 |
49.2 |
19 |
190 |
146 |
105 |
157 |
20 |
70 |
17 |
25 |
3.7 |
90509 |
ZH509 |
M14 |
45 |
| ZH90510 |
90 |
51.6 |
19 |
206 |
159 |
110 |
165 |
22 |
70 |
20 |
25 |
4.1 |
90510 |
ZH510 |
M16 |
50 |
|
|
