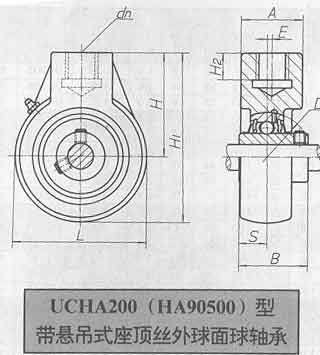

HA90500(UCHA200)型 带悬吊式座顶丝外球面球轴承参数表
| 带座轴承型号 |
外形尺寸 |
带座轴承重量 |
配用轴
承代号 |
配用轴承
座代号 |
配合
轴径 |
| D |
B |
S |
L |
H |
H1 |
H2 |
A |
E |
Dn |
Kg |
| HA90505 |
52 |
34.1 |
14.3 |
70 |
64 |
99 |
19 |
40 |
0 |
G 3/4" |
1 |
90505 |
HA505 |
25 |
| HA90506 |
62 |
38.1 |
15.9 |
80 |
64 |
104 |
19 |
40 |
0 |
G 3/4" |
1 |
90506 |
HA506 |
30 |
| HA90507 |
72 |
42.9 |
17.5 |
92 |
70 |
116 |
19 |
40 |
0 |
G 3/4" |
1.4 |
90507 |
HA507 |
35 |
| HA90508 |
80 |
49.2 |
19 |
96 |
73 |
121 |
19 |
40 |
2 |
G 3/4" |
1.5 |
90508 |
HA508 |
40 |
| HA90509 |
85 |
49.2 |
19 |
108 |
82 |
136 |
21 |
48 |
4 |
G 1" |
2.1 |
90509 |
HA509 |
45 |
| HA90510 |
90 |
51.6 |
19 |
114 |
83 |
140 |
21 |
48 |
5 |
G1" |
2.6 |
90510 |
HA510 |
50 |
| HA90511 |
100 |
55.6 |
22.2 |
126 |
87 |
150 |
25 |
60 |
7 |
G1 1/4" |
2.9 |
90511 |
HA511 |
55 |
| HA90512 |
110 |
65.1 |
25.4 |
142 |
102 |
173 |
28 |
60 |
9 |
G1 1/4" |
4.4 |
90512 |
HA512 |
60 |
| HA90513 |
120 |
65.1 |
25.4 |
166 |
117 |
200 |
32 |
70 |
9.5 |
G1 1/2" |
6.6 |
90513 |
HA513 |
65 |
| HA90514 |
125 |
74.6 |
30.2 |
166 |
117 |
200 |
32 |
70 |
9.5 |
G1 1/2" |
6.8 |
90514 |
HA514 |
70 |
| HA90515 |
130 |
77.8 |
33.3 |
166 |
117 |
200 |
32 |
70 |
9.5 |
G1 1/2" |
7 |
90515 |
HA515 |
75 |
|
|
