GEZ...ES系列

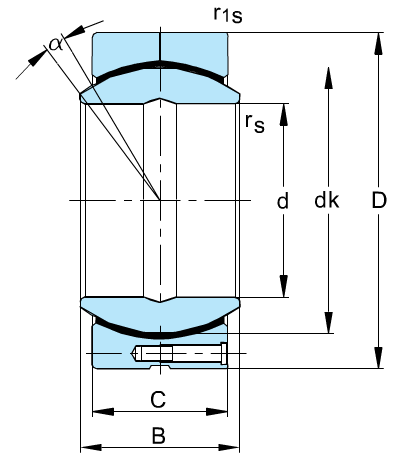

Boundary dimensions(mm)								Mass	Bearing Number
d	D	B	C	dk	rs min	r1s min	α° ≈	Kg ≈	KML
12.7	22.225	11.1	9.525	18	0.15	0.6	6	0.022	GEZ12ES
15.875	26.988	13.894	11.913	23	0.15	0.6	6	0.036	GEZ15ES
19.05	31.75	16.662	14.275	27.5	0.3	0.6	6	0.053	GEZ19ES
22.225	36.513	19.431	16.662	32	0.3	0.6	6	0.085	GEZ22ES
25.4	41.275	22.225	19.05	36.5	0.3	0.6	6	0.121	GEZ25ES
31.75	50.8	27.762	23.8	45.5	0.6	0.6	6	0.23	GEZ31ES
34.925	55.563	30.15	26.187	49	0.6	1	6	0.35	GEZ34ES
38.1	61.913	33.325	28.575	54.7	0.6	1	6	0.42	GEZ38ES
44.45	71.438	38.887	33.325	63.9	0.6	1	6	0.64	GEZ44ES
50.8	80.963	44.45	38.1	73	0.6	1	6	0.93	GEZ50ES
57.15	90.488	50.013	42.85	82	0.6	1	6	1.3	GEZ57ES
63.5	100.013	55.55	47.625	92	1	1	6	1.85	GEZ63ES
69.85	111.125	61.112	52.375	100	1	1	6	2.4	GEZ69ES
76.2	120.65	66.675	57.15	109.5	1	1	6	3.1	GEZ76ES
82.55	130.175	72.238	61.9	119	1	1	6	3.8	GEZ82ES
88.9	139.7	77.775	66.675	128	1	1	6	4.8	GEZ88ES
95.25	149.225	83.337	71.425	137	1	1	6	5.8	GEZ95ES
101.6	158.75	88.9	76.2	146	1	1	6	7	GEZ101ES
107.95	168.275	94.463	80.95	155	1	1	6	8.41	GEZ107ES
114.3	177.8	100.013	85.725	164.5	1	1	6	9.8	GEZ114ES
