GEWZ...ES系列

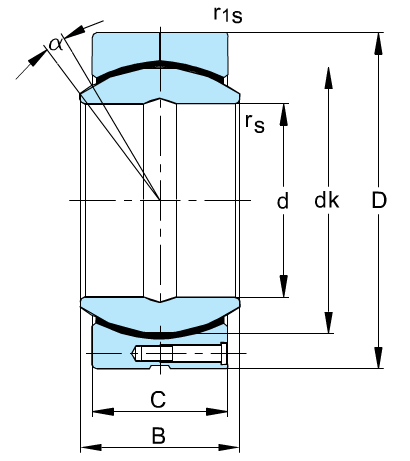

Boundary dimensions(mm)									Mass	Bearing Number
d	D	B	C	d1 max	dk	rs min	r1s min	α° ≈	Kg ≈	KML
12.7	22.225	19.05	9.525	15.875	18	0.15	0.6	5	0.024	GEWZ12ES
15.875	26.988	23.8	11.913	19.812	23	0.15	0.6	5	0.038	GEWZ15ES
19.05	31.75	28.575	14.275	23.368	27.5	0.3	0.6	5	0.064	GEWZ19ES
22.225	36.513	33.325	16.662	27.178	32	0.3	0.6	5	0.098	GEWZ22ES
25.4	41.275	38.1	19.05	30.988	36.5	0.3	0.6	5	0.142	GEWZ25ES
31.75	50.8	47.625	23.8	38.735	45.5	0.6	0.6	5	0.271	GEWZ31ES
34.925	55.563	52.375	26.187	42.418	49	0.6	1	5	0.373	GEWZ34ES
38.1	61.913	57.15	28.575	46.99	54.7	0.6	1	5	0.494	GEWZ38ES
44.45	71.438	66.675	33.325	54.991	63.9	0.6	1	5	0.762	GEWZ44ES
50.8	80.963	76.2	38.1	62.484	73	0.6	1	5	1.11	GEWZ50ES
57.15	90.488	85.725	42.85	70.104	82	0.6	1	5	1.57	GEWZ57ES
63.5	100.013	95.25	47.625	77.724	92	1	1	5	2.15	GEWZ63ES
69.85	111.125	104.775	52.375	85.852	100	1	1	5	2.9	GEWZ69ES
76.2	120.65	114.3	57.15	93.345	109.5	1	1	5	3.59	GEWZ76ES
82.55	130.175	123.825	61.9	101.219	119	1	1	5	4.69	GEWZ82ES
88.9	139.7	133.35	66.675	109.22	128	1	1	5	5.86	GEWZ88ES
95.25	149.225	142.875	71.425	116.586	137	1	1	5	7.11	GEWZ95ES
101.6	158.75	152.4	76.2	124.587	146	1	1	5	8.56	GEWZ101ES
114.3	177.8	171.45	85.725	140.335	164.5	1	1	5	12.24	GEWZ114ES
127	196.85	190.5	95.25	155.705	183	1	1	5	16.63	GEWZ127ES
