GEBK...S系列

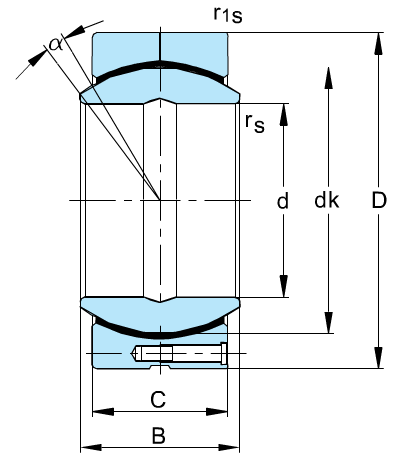

Boundary dimensions(mm)								Mass	Bearing Number
d	D	B	C	dk	rs min	r1s min	α° ≈	Kg ≈	KML
5	16	8	6	11.112	0.3	0.3	13	0.009	GEBK5S
6	18	9	6.75	12.7	0.3	0.3	13	0.013	GEBK6S
8	22	12	9	15.88	0.3	0.3	14	0.024	GEBK8S
10	26	14	10.5	19.05	0.3	0.6	14	0.039	GEBK10S
12	30	16	12	22.23	0.3	0.6	13	0.058	GEBK12S
14	34	19	13.5	25.4	0.3	0.6	16	0.084	GEBK14S
16	38	21	15	28.58	0.3	0.6	15	0.111	GEBK16S
18	42	23	16.5	31.75	0.3	0.6	15	0.16	GEBK18S
20	46	25	18	34.93	0.3	0.6	15	0.21	GEBK20S
22	50	28	20	38.1	0.3	0.6	15	0.26	GEBK22S
25	56	31	22	42.86	0.6	0.6	15	0.39	GEBK25S
28	62	35	25	47.63	0.6	0.6	15	0.53	GEBK28S
30	66	37	25	50.8	0.6	0.6	17	0.61	GEBK30S
