GEFZ...S系列

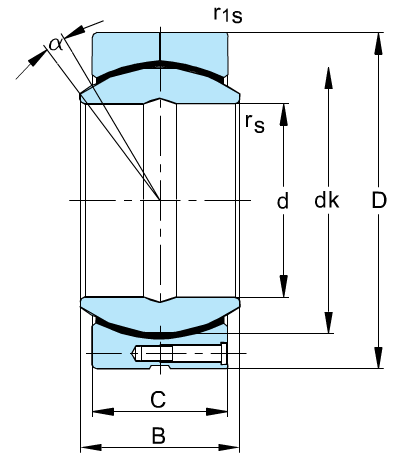

Boundary dimensions(mm)								Mass	Bearing Number
d	D	B	C	dk	rs min	r1s min	α° ≈	Kg ≈	KML
4.83	14.29	7.14	5.54	10.31	0.3	0.38	11	0.006	GEFZ4S
6.35	16.67	8.71	6.35	12.7	0.3	0.56	13.5	0.01	GEFZ6S
7.94	19.05	9.53	7.14	14.27	0.3	0.81	12	0.014	GEFZ7S
9.53	20.64	10.31	7.92	16.66	0.3	0.81	10	0.017	GEFZ9S
11.11	23.02	11.1	8.71	17.45	0.3	0.81	8	0.021	GEFZ11S
12.7	25.4	12.7	9.91	20.65	0.3	0.81	9.5	0.029	GEFZ12S
14.29	27.78	14.27	11.1	23.01	0.3	0.81	9.5	0.039	GEFZ14S
15.88	30.16	15.88	12.7	25.4	3	0.81	9.5	0.05	GEFZ15S
19.05	36.51	19.05	15.06	30.15	3	1.12	9	0.093	GEFZ19S
22.23	39.69	22.23	17.86	33.32	0.6	1.12	9.5	0.119	GEFZ22S
25.4	44.45	25.4	20.24	38.1	0.6	1.12	10	0.175	GEFZ25S
