GE...XT-2RS系列

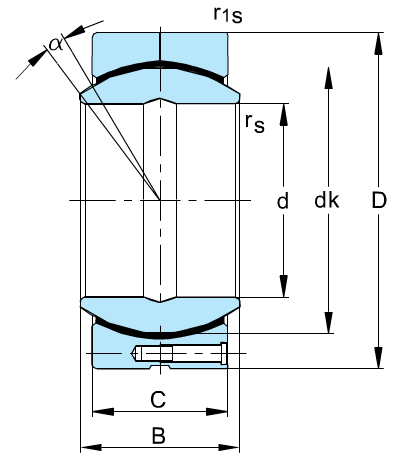

Boundary dimensions(mm)								Mass	Bearing Number
d	D	B	C	dk	rs min	r1s min	α° ≈	Kg ≈	KML
140	210	90	70	180	1	1	7	11.02	GE140XT-2RS
160	230	105	80	200	1	1	8	14.01	GE160XT-2RS
180	260	105	80	225	1.1	1.1	6	18.65	GE180XT-2RS
200	290	130	100	250	1.1	1.1	7	28.03	GE200XT-2RS
220	320	135	100	275	1.1	1.1	8	35.51	GE220XT-2RS
240	340	140	100	300	1.1	1.1	8	39.91	GE240XT-2RS
260	370	150	110	325	1.1	1.1	7	51.54	GE260XT-2RS
280	400	155	120	350	1.1	1.1	6	65.06	GE280XT-2RS
300	430	165	120	375	1.1	1.1	7	78.07	GE300XT-2RS
